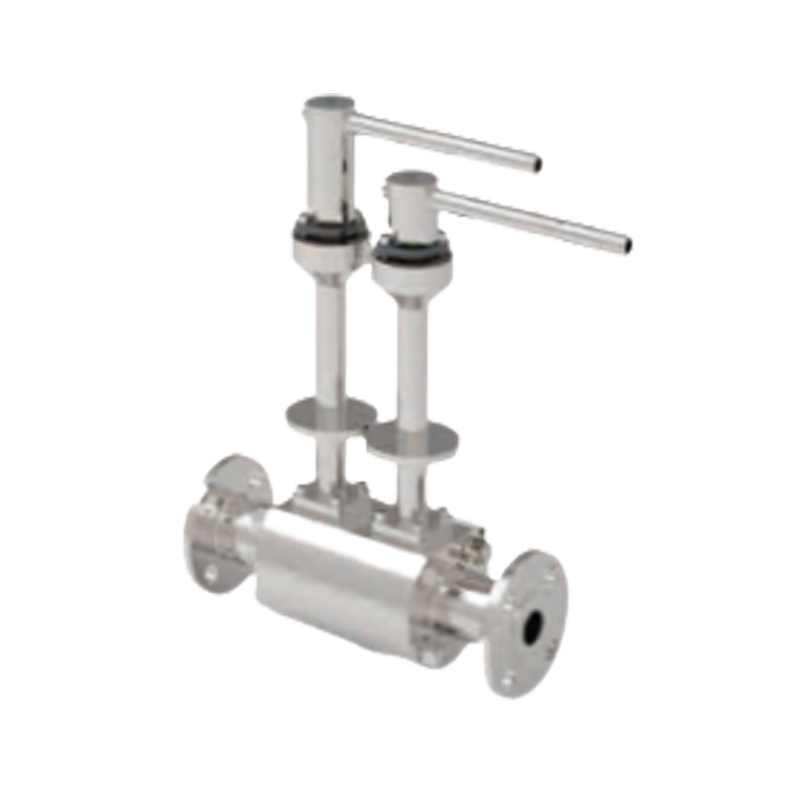

Design features:
Drip pan design
Low leakage packing design
Extend the bonnet to keep the packing box away from the medium
Pressure relief holes prevent abnormal pressure buildup in the inner cavity
Suitable for low and ultra-low temperature designs
Design standard |
API 6D |
Caliber range |
NPS1/2~ 6 |
Pressure rating |
ASME Class 150-2500(for 1/2"~3") |
Applicable temperature |
-196° C ~ 100 ° C |
Structure type |
One piece type, three piece type, top type |
Connection mode |
RF, RTJ, BW |
Body material |
Stainless steel |
