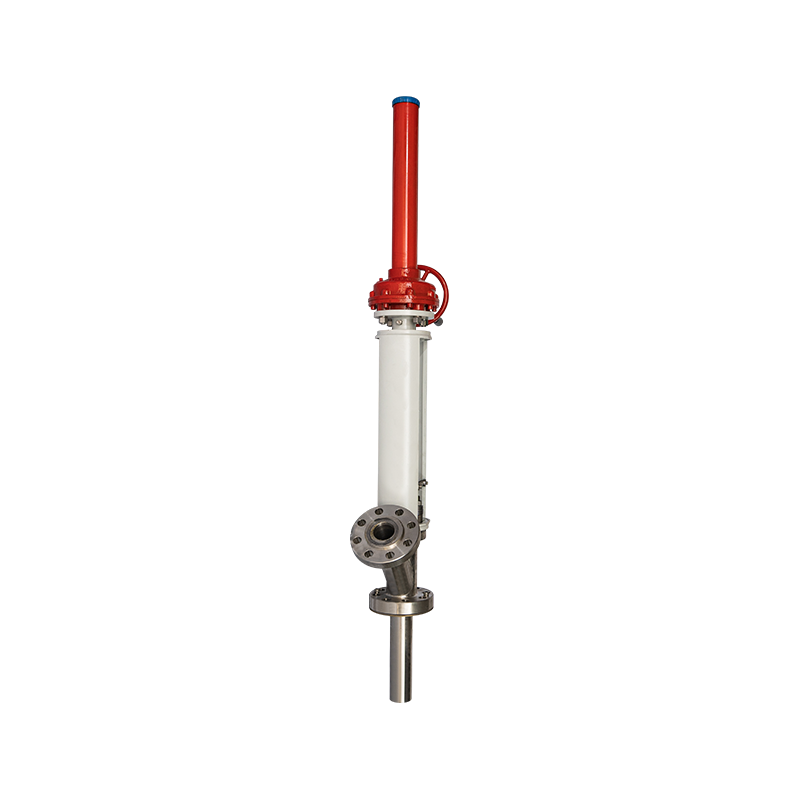

Pneumatic Spray Valve

Variable import and export flanges: import and export flanges can be customized according to customer needs, and the internal size of the valve is fixed
Specially designed spray tank: can ensure 360 degrees without dead Angle spray, but also up and down 15 degrees spray rinse
Detachable spray head:
1. Duplex stainless steel material to increase strength
2. Narrow inside and wide outside spray tank, not easy to break
3. Stellite hard seal + O-type hard inside soft seal, better protect the soft seal, extend the service life
Three-stage valve stem: the size of the high machining accuracy is concentrated in the two parts, simplifying the middle part processing
Detachable seat: The Depth length can be determined according to customer requirements
Combined packing system: A variety of material packing combinations, so that the packing has better sealing performance

DOWNLOAD
INQUIRY
  • Description
  • Contact Us

Design specification

ASME B16.34

Connection standard

ASME B16.5, EN 1092-1, GB/T 9124

Inspection standard

ISO 10497, GB/T 26480, API 598

Size range

NPS 1”1/2~4” / DN 40 ~ 100

Pressure level

ASME Class 300 / PN 25~63

Applicable temperature

-20℃~200℃

Connection method

Flange connection RF

Structural type

Casting, welding

Shell material

CF8M, CF3M, F304, F304L, F316, F316L

Actuator

Pneumatic actuator, electric actuator
