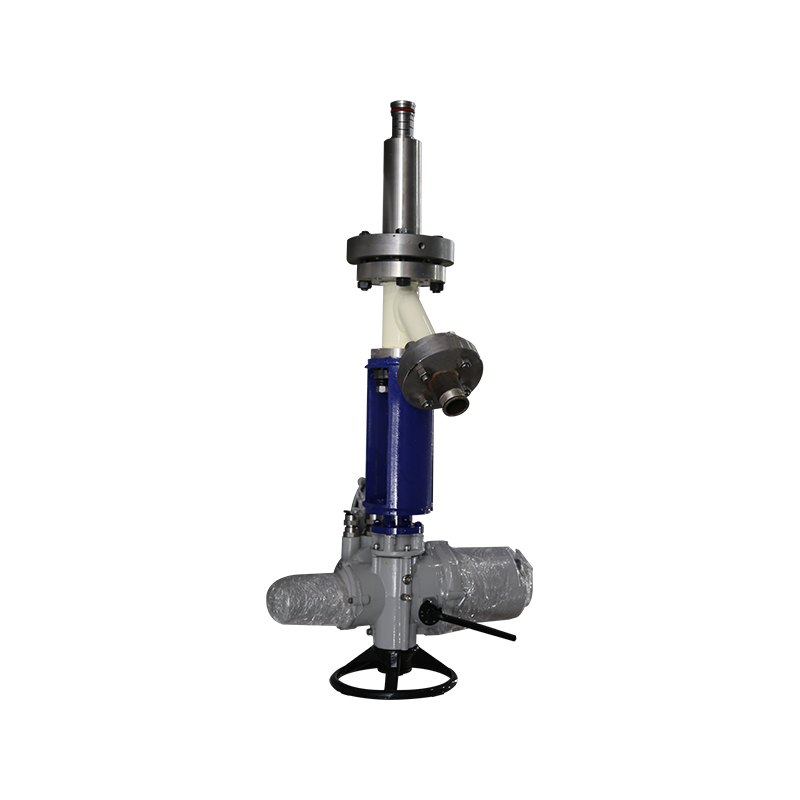

Electric Spray Valve

Features of spray valve:
Variable inlet and outlet flanges: The inlet and outlet flanges can be customized according to customer needs, and the internal dimensions of the valve are fixed
Specially designed spray slot: It can ensure 360-degree spray without dead angles, and can also spray and flush 15 degrees up and down
Removable spray head:
1. Duplex stainless steel material increases strength
2. The spray slot is narrow inside and wide outside, not easy to break
3. Stellite hard seal + O-ring hard outside and soft inside double seal, better protect the soft seal and extend the service life
Three-section valve stem: Concentrate the dimensions with high processing precision on the two end parts to simplify the middle section processing
Removable valve seat: The penetration length can be determined according to customer requirements
Combined packing system: A combination of packing materials to make the packing have better sealing performance

DOWNLOAD
INQUIRY
  • Description
  • Contact Us

Design specification

ASME B16.34

Connection standard

ASME B16.5, EN 1092-1, GB/T 9124

Inspection standard

ISO 10497, GB/T 26480, API 598

Size range

NPS 1”1/2~4” / DN 40 ~ 100

Pressure level

ASME Class 300 / PN 25~63

Applicable temperature

-20℃~200℃

Connection method

Flange connection RF

Structural type

Casting, welding

Shell material

CF8M, CF3M, F304, F304L, F316, F316L

Actuator

Pneumatic actuator, electric actuator
