Disc Rise Plunger Valves for Bottom Discharging

Efficient Emptying for Silos, Tanks & Hoppers

"Complete Discharge. Zero Residue. Trust Valve—Bottom Outlets Perfected."

INQUIRY

  • Basic Types

  • Key Features & Benefits
  • Product Range
  • Technical Specifications
  • Application Sectors

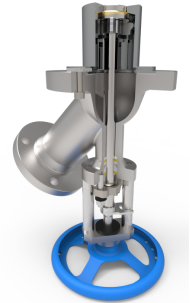

Rising Disc to Open

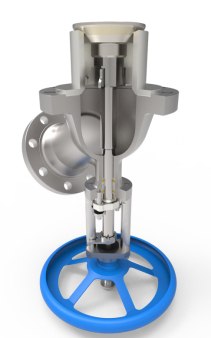

Rising Disc to Close

  • Basic Types

  • Key Features & Benefits
  • Product Range
  • Technical Specifications
  • Application Sectors

Features

Benefits

Disc Rise Mechanism

Large, unobstructed opening for fast, complete emptying; minimizes residue in silos/tanks.

Abrasion-Resistant Build

Ductile iron, 316L stainless steel, or tungsten carbide-coated plungers withstand grit, grains, and chemicals.

Tight Sealing

PTFE/rubber seals prevent leakage when closed—critical for hazardous or valuable materials.

Self-Cleaning Action

Plunger movement dislodges stuck material, reducing clogs in sticky/granular service (cement, sugar).

Easy Access

Quick removal of plunger/seals for maintenance—cuts downtime in continuous discharge operations.

  • Basic Types

  • Key Features & Benefits
  • Product Range
  • Technical Specifications
  • Application Sectors

Standard Bottom-Discharge Valves

  • Sizes: NPS 2"–12" (DN 50–300); Pressure: Up to 150 psi (10.3 bar).
  • For grains, fertilizers, and non-abrasive bulk materials.

Heavy-Duty Abrasive Service

  • Sizes: NPS 3"–16" (DN 80–400); Pressure: Up to 300 psi (20.7 bar).
  • Tungsten carbide trim for ores, coal, and concrete aggregates.

Corrosion-Resistant Variants

  • Sizes: NPS 1"–10" (DN 25–250); Hastelloy®/Inconel® for chemicals, salt, or acidic bulk.

  • Basic Types

  • Key Features & Benefits
  • Product Range
  • Technical Specifications
  • Application Sectors
  • Size Range: NPS 1"–16" (DN 25–400)
  • Pressure Rating: 50–300 psi (3.4–20.7 bar)
  • Temperature Range: -20°C to 120°C (-4°F to 248°F)
  • End Connections: Flanged (ASME B16.5), Butt-Weld (ASME B16.25)

  • Basic Types

  • Key Features & Benefits
  • Product Range
  • Technical Specifications
  • Application Sectors
  • Food/Beverage: Silo discharge of flour, sugar, grains (hygienic options available).
  • Mining: Emptying ore hoppers, coal bins, and aggregate tanks.
  • Chemicals: Discharging corrosive powders or granular reagents.
  • Agriculture: Fertilizer, seed, and feed tank bottom outlets.
  • Construction: Cement, sand, and concrete mix discharge.
