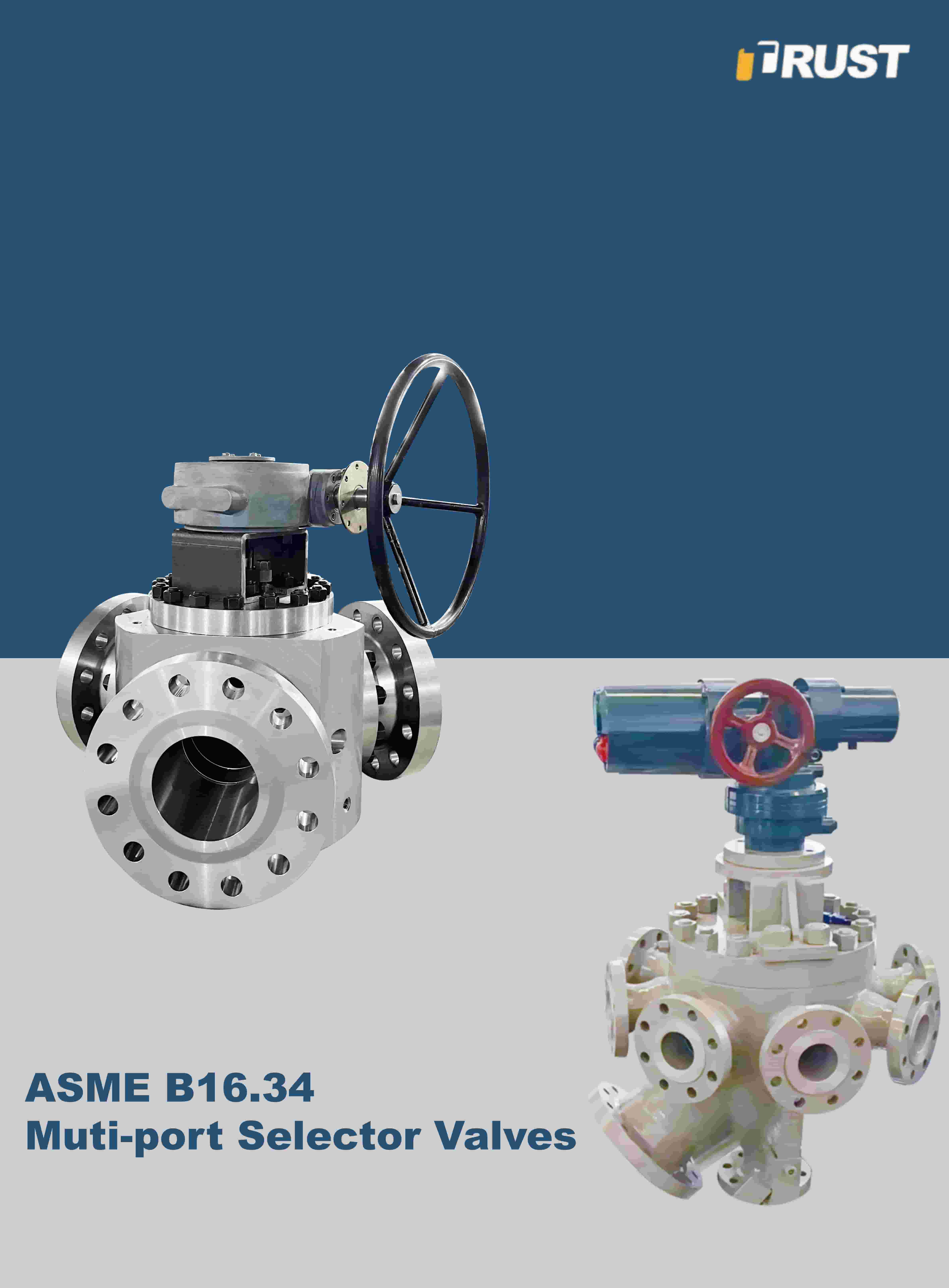

Multi-Port Selector Valves

Versatile Flow Routing for Complex Systems

"One Valve. Multiple Paths. Trust Valve—Flow Flexibility Redefined."

INQUIRY
  • Key Features & Benefits
  • Product Range
  • Technical Specifications
  • Application Sectors

Features

Benefits

Multi-Port Design

3-way, 4-way, or custom port configurations (2–6 ports) eliminate the need for multiple valves, simplifying piping layouts.

Rotary Core Mechanism

90°–180° rotation switches flow paths quickly, enabling on-the-fly redirection of liquids, gases, or slurries.

Bubble-Tight Sealing

Precision-machined seats (PTFE, metal-to-metal) prevent cross-contamination between ports, critical for chemicals or food-grade media.

High-Flow Capacity

Unobstructed internal channels minimize pressure drop, suitable for high-volume applications (water treatment, bulk transfer).

Corrosion Resistance

316L stainless steel, Hastelloy®, or PTFE-lined options withstand corrosive fluids (acids, solvents, seawater).
  • Key Features & Benefits
  • Product Range
  • Technical Specifications
  • Application Sectors

Standard Multi-Port Valves

  • Ports: 3–4 way; Sizes: 1/2"–4" NPS (DN 15–100); Pressures: Up to 150 psi (10.3 bar).
  • For general industrial routing (cooling loops, chemical blending).

High-Pressure Selector Valves

  • Ports: 3–5 way; Sizes: 1"–6" NPS (DN 25–150); Pressures: Up to 600 psi (41.4 bar).
  • For oil & gas, hydraulic systems, or high-pressure cleaning.

Sanitary Multi-Port Valves

  • 316L electropolished bodies; 3–4 way; Sizes: 1/2"–3" NPS.
  • FDA-compliant seals for food/beverage/pharmaceutical blending.
  • Key Features & Benefits
  • Product Range
  • Technical Specifications
  • Application Sectors
  • Size Range: 1/2"–6" NPS (DN 15–150)
  • Temperature Range: -20°C to 200°C (-4°F to 392°F)
  • Actuation: Manual, pneumatic, electric (for automated systems).
  • Key Features & Benefits
  • Product Range
  • Technical Specifications
  • Application Sectors
  • Chemical Processing: Blend, divert, or isolate reagents in batch reactors.
  • Water Treatment: Switch between filtration stages or bypass systems.
  • Food/Beverage: Route ingredients (syrups, oils) to mixing tanks without cross-contamination.
  • Oil & Gas: Redirect flow between storage tanks, pipelines, or processing units.
  • Hydraulics: Control fluid direction in machinery or power systems.
