Butterfly Valves

Engineered for Critical Applications: Precision Control & Zero-Leakage Sealing

"Unmatched Sealing. Extreme Efficiency. Trust Valve’s High-Performance Butterfly Valves—Built for Demanding Industrial Environments."

INQUIRY
  • Key Features & Benefits
  • Product Range
  • Technical Specifications
  • Application Sectors

Features

Benefits

Triple-Offset Geometry

Eliminates friction between sealing surfaces, extending service life and reducing maintenance costs.

Metal-to-Metal Sealing (Stellite®, Inconel®)

Ensures zero leakage (API 598 Class VI) in high-pressure and high-temperature environments.

Fire-Safe Design (API 607/ISO 10497 Compliant)

Maintains structural integrity during fire emergencies, preventing catastrophic failures.

Low Torque Operation

Reduces actuator size and energy consumption, lowering operational costs.

Bi-Directional Sealing

Provides reliable shutoff in either flow direction, enhancing system flexibility.
  • Key Features & Benefits
  • Product Range
  • Technical Specifications
  • Application Sectors

High-Performance Butterfly Valves

  • Double-offset design for general industrial applications.
  • Available in wafer, lug, and flanged end connections.

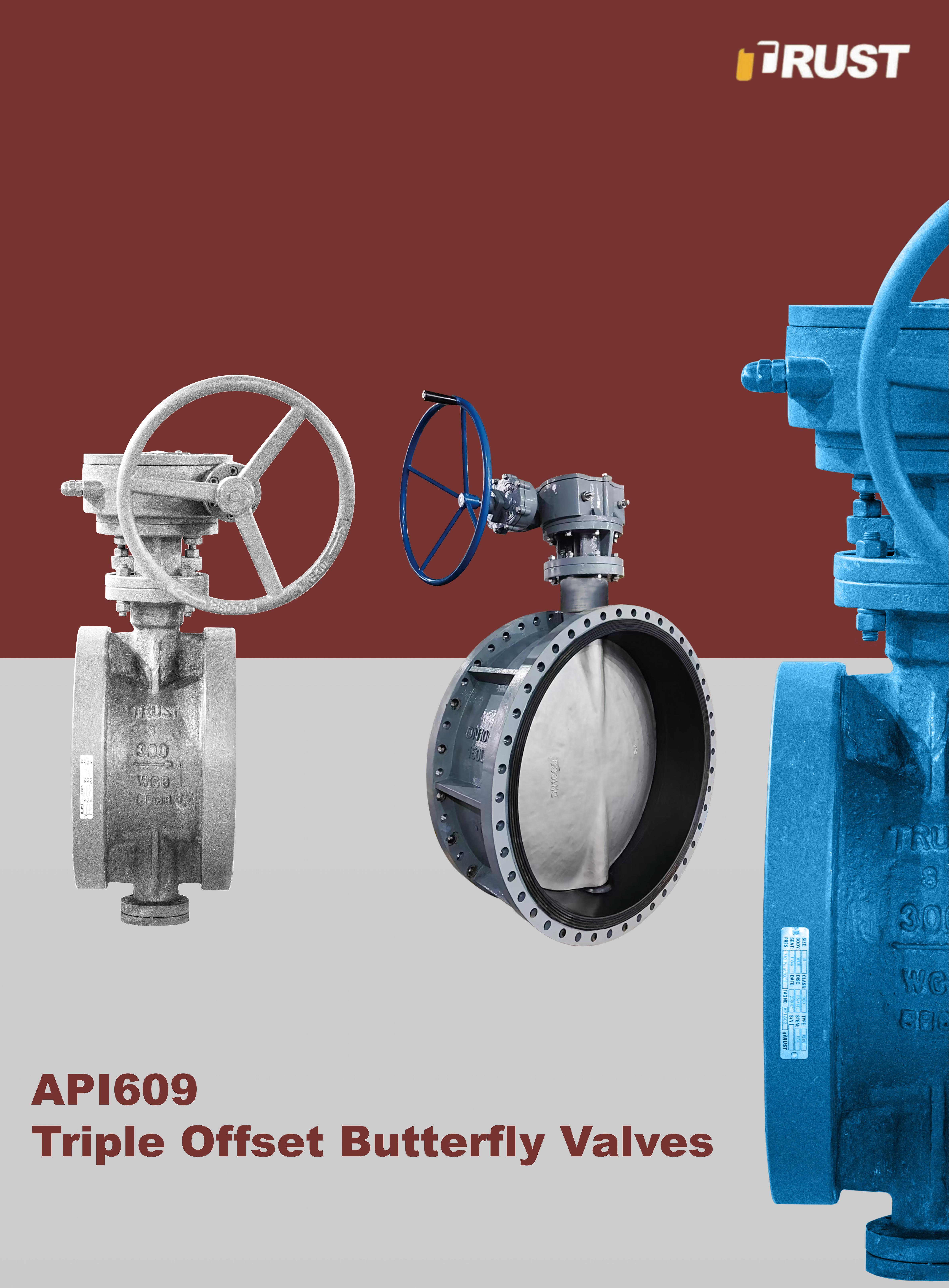

Triple Offset Butterfly Valves

  • For critical high-pressure, high-temperature services.
  • Features conical sealing surface and torque-seated disc.

Cryogenic Butterfly Valves

  • Specially engineered for LNG and cryogenic applications (-196°C).
  • Meets BS 6364 and API 6D Cryogenic standards.
  • Key Features & Benefits
  • Product Range
  • Technical Specifications
  • Application Sectors
  • Size Range: NPS 2" to 144" (DN 50 to DN 3600)
  • Pressure Classes: 150 to 2500 (PN 20 to PN 420)
  • Temperature Range: -196°C to +650°C
  • Materials: Carbon Steel, Stainless Steel (316, 321, 347), Duplex, Super Duplex
  • Testing: API 598, ISO 5208, API 607, ISO 15848-1 (Low Emission)
  • Key Features & Benefits
  • Product Range
  • Technical Specifications
  • Application Sectors
  • Oil & Gas (LNG Terminals, Pipeline Transmission)
  • Power Generation (Combined Cycle Plants, Nuclear Cooling Systems)
  • Chemical Processing (High-Pressure Reactors, Distillation Columns)
  • Marine (Ballast Water Systems, Shipboard Steam Lines)
  • Mining (Tailings Pipelines, Acidic Slurry Transport)
