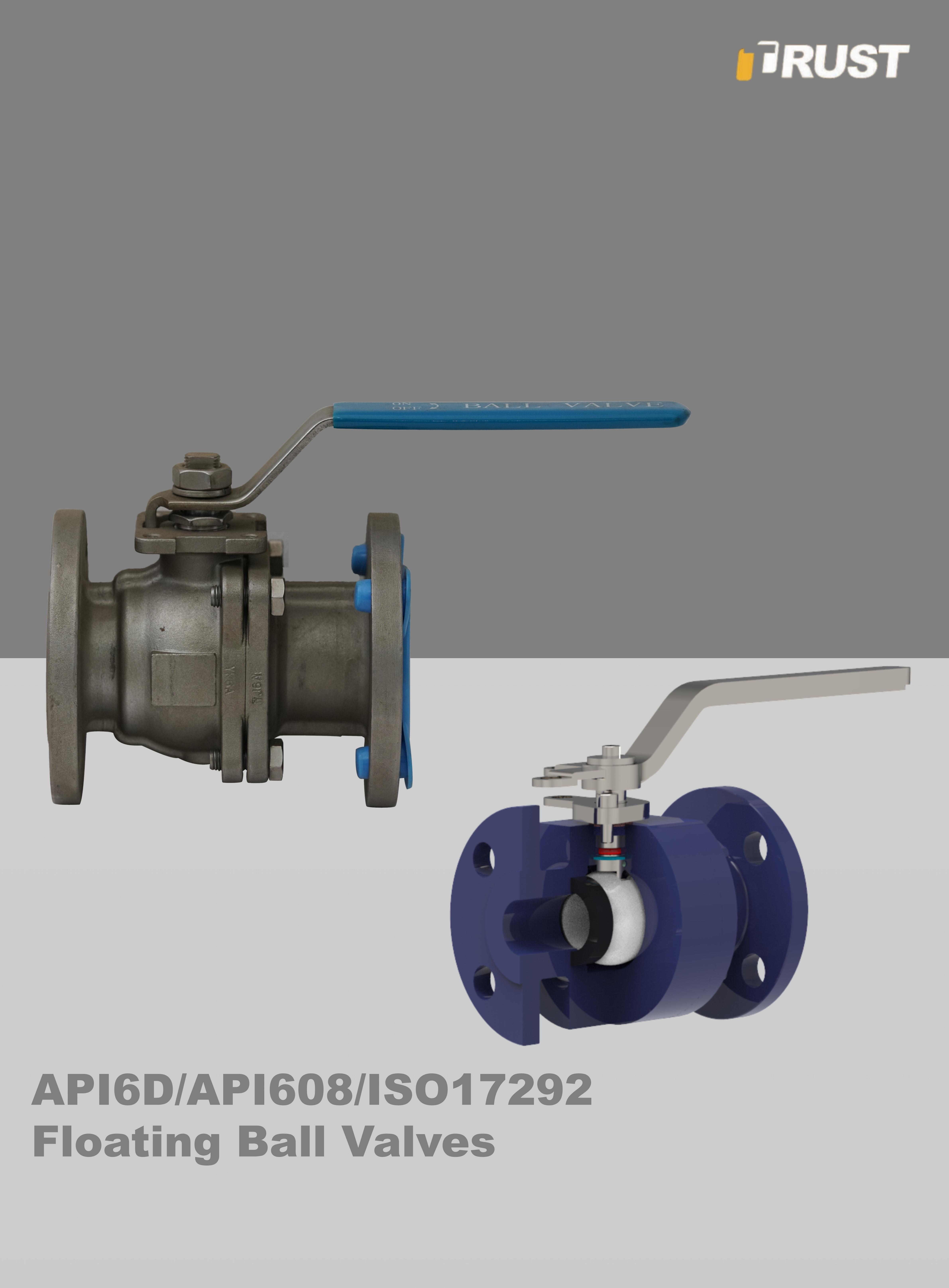

Soft-Seated Floating Ball Valves

Precision Control & Bubble-Tight Sealing for Diverse Industrial Applications

Showcase soft-seated floating ball valve in a chemical processing plant or pipeline, with overlay text:
"Reliable Sealing. Versatile Performance. Trust Valve’s Soft-Seated Floating Balls—Engineered for Critical Flow Control."

INQUIRY
  • Key Features & Benefits
  • Product Range
  • Technical Specifications

  • Why Choose Trust Valve’s Soft-Seated Floating Ball Valves?

  • Application Sectors

Features

Benefits

Floating Ball Design

Ensures uniform sealing force against downstream seat, providing zero leakage in low to medium pressure systems.

Soft Seat Materials (PTFE, RPTFE, NBR, Viton®, Kalrez®)

Compatible with a wide range of media, including corrosive chemicals, oils, and gases.

Fire-Safe Design (API 607/6FA Compliant)

Metal backup seals maintain integrity during fire emergencies, preventing catastrophic failure.

Anti-Static Device

Eliminates electrostatic charge buildup, ensuring safety in flammable environments.

Low Torque Operation

Reduces actuation force requirements, lowering energy costs and extending actuator lifespan.
  • Key Features & Benefits
  • Product Range
  • Technical Specifications

  • Why Choose Trust Valve’s Soft-Seated Floating Ball Valves?

  • Application Sectors

Side Entry Floating Ball Valves

  • Compact design for space-constrained installations.
  • Bolted body construction for easy maintenance.
  • Available in 2-piece or 3-piece configurations.

Top Entry Floating Ball Valves

  • In-line maintenance without pipeline disassembly.
  • Ideal for large-diameter and high-pressure applications.
  • Streamlined flow path minimizes pressure drop.

Wedged Seats Top Entry Floating Ball Valves

  • Bi-direction flow Self-adjusting seats compensate for wear, ensuring long-term sealing performance.
  • Enhanced shutoff capability in high-cycle applications.
  • Suitable for abrasive or viscous media.
  • Key Features & Benefits
  • Product Range
  • Technical Specifications

  • Why Choose Trust Valve’s Soft-Seated Floating Ball Valves?

  • Application Sectors
  • Size Range: NPS 1/2" to 12" (DN 15 to DN 300)
  • Pressure Classes: 150 to 1500 (PN 20 to PN 250)
  • Temperature Range: -100°C to +232°C (varies by seat material)
  • End Connections: Flanged, Butt-Welded, Socket-Welded, Threaded
  • Testing: API 598, ISO 5208, API 607
  • Key Features & Benefits
  • Product Range
  • Technical Specifications

  • Why Choose Trust Valve’s Soft-Seated Floating Ball Valves?

  • Application Sectors
  • Sealing Excellence: Bubble-tight shutoff (Class VI leakage) in critical applications.
  • Custom Solutions: Tailored seat materials and coatings for specific media compatibility.
  • Global Compliance: Certified to API, ASME, ISO, and regional standards (e.g., CE, PED).
  • Lifecycle Cost Savings: 50% longer service life than standard ball valves in corrosive environments.
  • Key Features & Benefits
  • Product Range
  • Technical Specifications

  • Why Choose Trust Valve’s Soft-Seated Floating Ball Valves?

  • Application Sectors
  • Chemical Processing (Acids, Bases, Solvents)
  • Oil & Gas (Refineries, Pipeline Distribution)
  • Water Treatment (Potable Water, Wastewater)
  • Food & Beverage (Sanitary Processes)
  • Pharmaceuticals (High-Purity Media)
