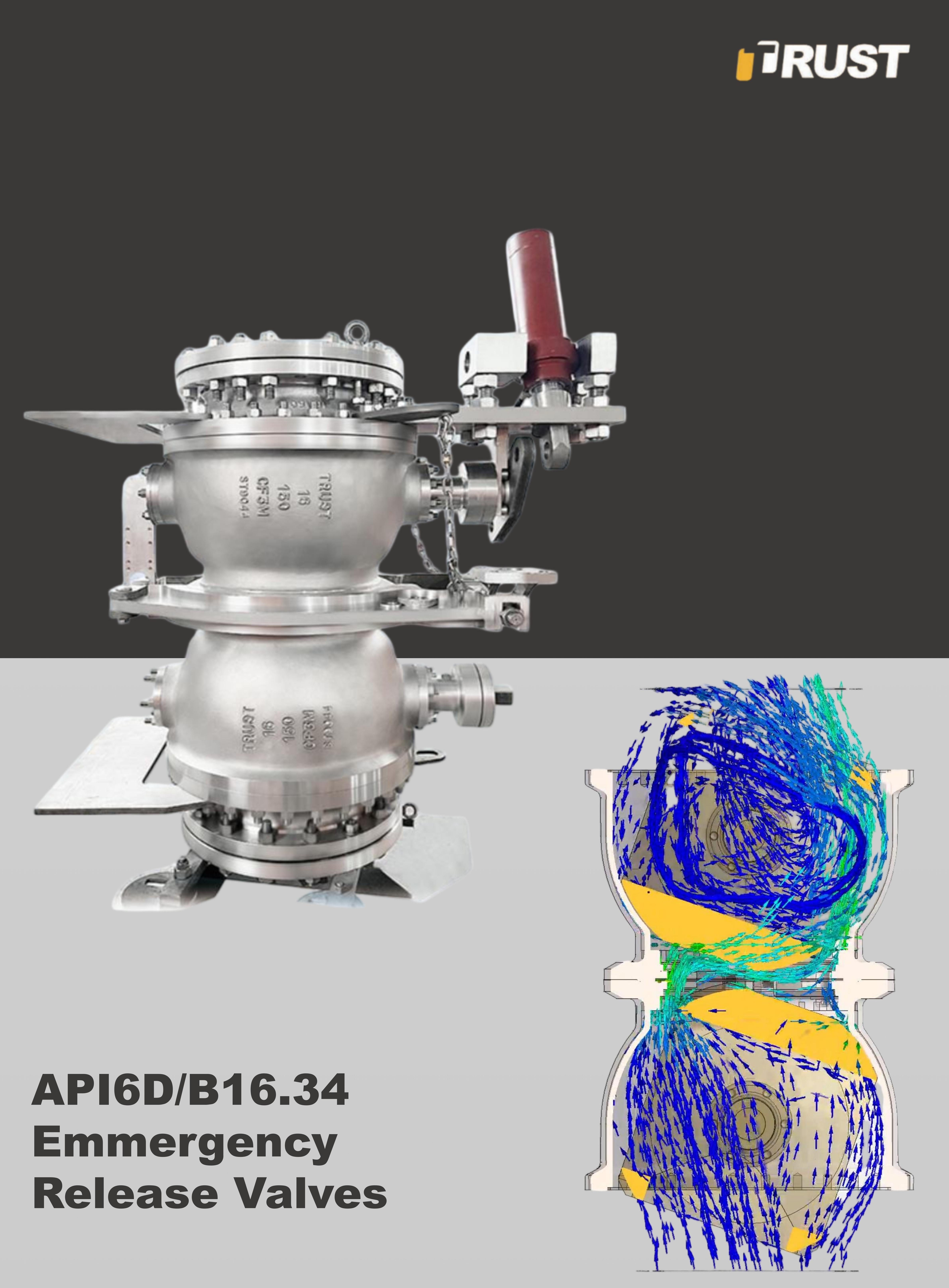

LNG Loading Arm Emergency Release Coupling (ERC) Valves

Safety-Critical Separation for Cryogenic Transfer

"Cryo-Ready. Instant Release. Trust Valve—LNG Safety Under Pressure."

INQUIRY
  • Key Features & Benefits
  • Product Range
  • Technical Specifications
  • Application Sectors

Features

Benefits

Cryogenic Compatibility

316L stainless steel/Inconel® construction withstands -162°C (-260°F) LNG temperatures without brittleness.

Fail-Safe Emergency Release

Automated (hydraulic/pneumatic) or manual triggers for rapid separation (≤1 second) during tanker drift, fire, or overpressure—prevents loading arm damage.

Dual Block-and-Bleed Sealing

Metal-to-metal seats + PTFE backup seals ensure zero leakage post-separation, critical for containing volatile LNG.

Impact-Resistant Design

Reinforced body and coupling lugs withstand dynamic forces during release, maintaining structural integrity.

Interlock Compatibility

Integrates with loading arm control systems (PLC/SCADA) for synchronized shutdown, enhancing operational safety.
  • Key Features & Benefits
  • Product Range
  • Technical Specifications
  • Application Sectors

Standard LNG ERC Valves

  • Sizes: NPS 4"–12" (DN 100–300); Pressure: Up to 150 psi (10.3 bar).
  • For onshore terminals and small-scale LNG transfer.

High-Pressure ERC Valves

  • Sizes: NPS 6"–16" (DN 150–400); Pressure: Up to 300 psi (20.7 bar).
  • For offshore LNG loading/unloading (FPSOs, shuttle tankers).

Explosion-Proof Variants

  • ATEX/IECEx-certified actuators for hazardous zones (Zone 1/2); NACE MR0175 for sour LNG service.
  • Key Features & Benefits
  • Product Range
  • Technical Specifications
  • Application Sectors
  • Size Range: NPS 4"–16" (DN 100–400)
  • Temperature Range: -196°C to 80°C (-320°F to 176°F)
  • Materials: 316L stainless steel, Inconel® 625 trim.
  • Testing: Cryogenic leak testing (ISO 21089), hydraulic burst tests, fire-safe validation (API 607).
  • Key Features & Benefits
  • Product Range
  • Technical Specifications
  • Application Sectors
  • LNG Terminals: Tanker-to-terminal loading arm emergency separation.
  • Shuttle Tankers: Offshore-to-onshore LNG transfer safety.
  • Truck Loading Stations: Rapid disconnection during vehicle emergencies.
  • FPSOs: Floating production storage offloading unit LNG transfer systems.
