Cryogenic Valves

Common Materials Used in Cryogenic Valves

The performance and reliability of a Cryogenic Valve are almost entirely dependent on the materials selected. In an extremely cryogenic temperature environment, materials must possess two key properties: low-temperature toughness (Resistance to Brittle Fracture) and low thermal conductivity. If materials exhibit brittle fracture or cause excessive heat leak at low temperatures, the valve will fail, thereby jeopardizing the safety of the entire cryogenic application system.

Stainless Steel

Stainless steel is the most widely used and critical material in Cryogenic Valve applications, especially in extreme environments below -150°C.

• Performance and Grade Selection:
  • Austenitic Stainless Steel: This is the material of choice for cryogenic applications. Its key advantage lies in its face-centered cubic (FCC) crystal structure, which maintains good ductility and toughness even at extreme cryogenic temperatures, avoiding low-temperature brittleness.
    • Common Grades: 304, 304L, 316, 316L. Low-carbon grades (L-series, such as 304L and 316L) are particularly favored for their excellent weldability and resistance to intergranular corrosion.
  • Duplex Stainless Steel and Precipitation Hardening Steels (PH Steels): Generally not recommended for extreme cryogenic applications, as their ferritic phase or microstructure may exhibit reduced toughness at low temperatures.



Trust Valve (Jiangsu) Co., Ltd. possesses deep expertise in the manufacturing of special alloy valves, enabling the skilled selection and processing of high-standard austenitic stainless steel materials, for its customized valves used in ultra-low temperature conditions. The company is equipped with over 100 sets of special lathes and CNC machining centers, and is capable of performing NDT (RT, UT, MT, PT) and the vital cryogenic testing, ensuring that every stainless steel Cryogenic Valve component can withstand the design-required extreme cryogenic temperatures and pressures before leaving the factory, guaranteeing product cryogenic reliability.

Brass

Brass is mainly used for certain specific cryogenic applications with relatively less extreme temperature requirements, such as at cryogenic temperatures above -100°C (though true cryogenic is usually defined as below -150°C), or as a material for certain components.

• Performance and Suitability:
  • Main Advantages: Good machinability, relatively lower cost.
  • Limitations: Not suitable for liquid oxygen service (potential safety hazards), and its low-temperature toughness is far inferior to austenitic stainless steel. The cryogenic temperature limit for brass is typically around -100°C, restricting its use in extreme cryogenic applications.



Other Material Considerations

Beyond the primary metallic materials, the performance of Cryogenic Valves also relies on the selection of non-metallic materials, particularly for seals, packing, and gaskets.

1. Non-Metallic Materials:
   • PTFE (Polytetrafluoroethylene)/RPTFE (Reinforced PTFE): The material of choice for cryogenic seats and packing because it maintains flexibility at cryogenic temperatures, offering excellent sealing performance.
   • PCTFE (Polychlorotrifluoroethylene): Offers higher strength and wear resistance, often used for seats in high-pressure cryogenic applications.
   • Graphite: Flexible graphite is often used in stem packing for fire-safe designs, but its sealing performance in extreme cryogenic applications is generally inferior to polymer materials.
2. Fluid Compatibility:
   • Materials must be chemically compatible with the cryogenic fluid being handled (e.g., liquid oxygen, liquid hydrogen). For instance, valve components handling liquid oxygen must undergo strict cleaning procedures to remove any organic contaminants, avoiding the risk of explosion in an oxygen-rich environment.
3. Pressure Requirements:
   • The wall thickness and strength of the valve body and bonnet must be calculated and verified according to the design pressure requirements. At the same cryogenic temperature, high-pressure valves need higher strength materials and more stringent quality control.

In the design and manufacturing process, Trust Valve (Jiangsu) Co., Ltd. strictly adheres to material fluid compatibility and pressure requirements, ensuring that all Cryogenic Valves (including cryogenic globe valves, cryogenic ball valves, etc.) meet certification standards such as API, EU CE, SIL, and provide safe and reliable control in high-pressure, ultra-low temperature conditions. This commitment to materials science and quality systems is fundamental to ensuring the long-term reliable operation of Cryogenic Valves.

Installation and Maintenance of Cryogenic Valves

Best Practices for Installation

The installation of Cryogenic Valves differs significantly from that of conventional valves, and specific steps must be followed to ensure their performance:

1. Cleanliness is Paramount:
   • Importance: Any oil, dirt, fibers, or organic residues inside the valve, especially when handling oxidizing fluids like Liquid Oxygen (LOX), can lead to an explosion.
   • Procedure: Before installation, Cryogenic Valves must be thoroughly degreased and cleaned. Trust Valve (Jiangsu) Co., Ltd. subjects valves for critical cryogenic applications like oxygen service to special cleaning and packaging before shipment, ensuring their cleanliness during transport and storage.
2. Proper Handling and Storage:
   • Procedure: Valves should be stored in a dry, clean environment, avoiding contact between the ports and the ground. During handling, impacts or drops must be avoided, especially to the extended stem/bonnet section, to prevent deformation that could affect operation and sealing.
3. Alignment and Support:
   • Procedure: When connecting flanges, the piping must be precisely aligned to avoid imposing external stresses on the valve body. Especially for Cryogenic Valves with extended bonnets, appropriate support should be considered for the valve body to prevent pipeline stresses, caused by low-temperature contraction or thermal expansion, from being transferred to the valve.
4. Gradual Fastening:
   • Procedure: Flange bolts should be tightened in a cross-pattern sequence, incrementally over multiple steps, to ensure the gasket is compressed uniformly and achieves the design-required sealing load.



Maintenance Procedures

Regular maintenance and inspection are key to ensuring Cryogenic Valves maintain zero leakage and reliability in extreme cryogenic applications.

Troubleshooting Common Issues

In cryogenic applications, Cryogenic Valves may encounter the following common issues:

Trust Valve (Jiangsu) Co., Ltd. focuses not only on manufacturing high-quality Cryogenic Valves but also ensures product reliability from the source through its comprehensive quality system, including rigorous cryogenic testing (such as liquid nitrogen testing) and NDT. The company's professional inspection facilities and effective quality systems enable it to provide necessary repair support and technical consultation to customers, helping users solve complex maintenance challenges that may arise in ultra-low temperature conditions, ensuring Cryogenic Valves operate safely and efficiently throughout their lifecycle.

Cryogenic Valves FAQ

This section addresses some common questions regarding the design, selection, and application of Cryogenic Valves, helping users better understand and utilize these critical industrial components.

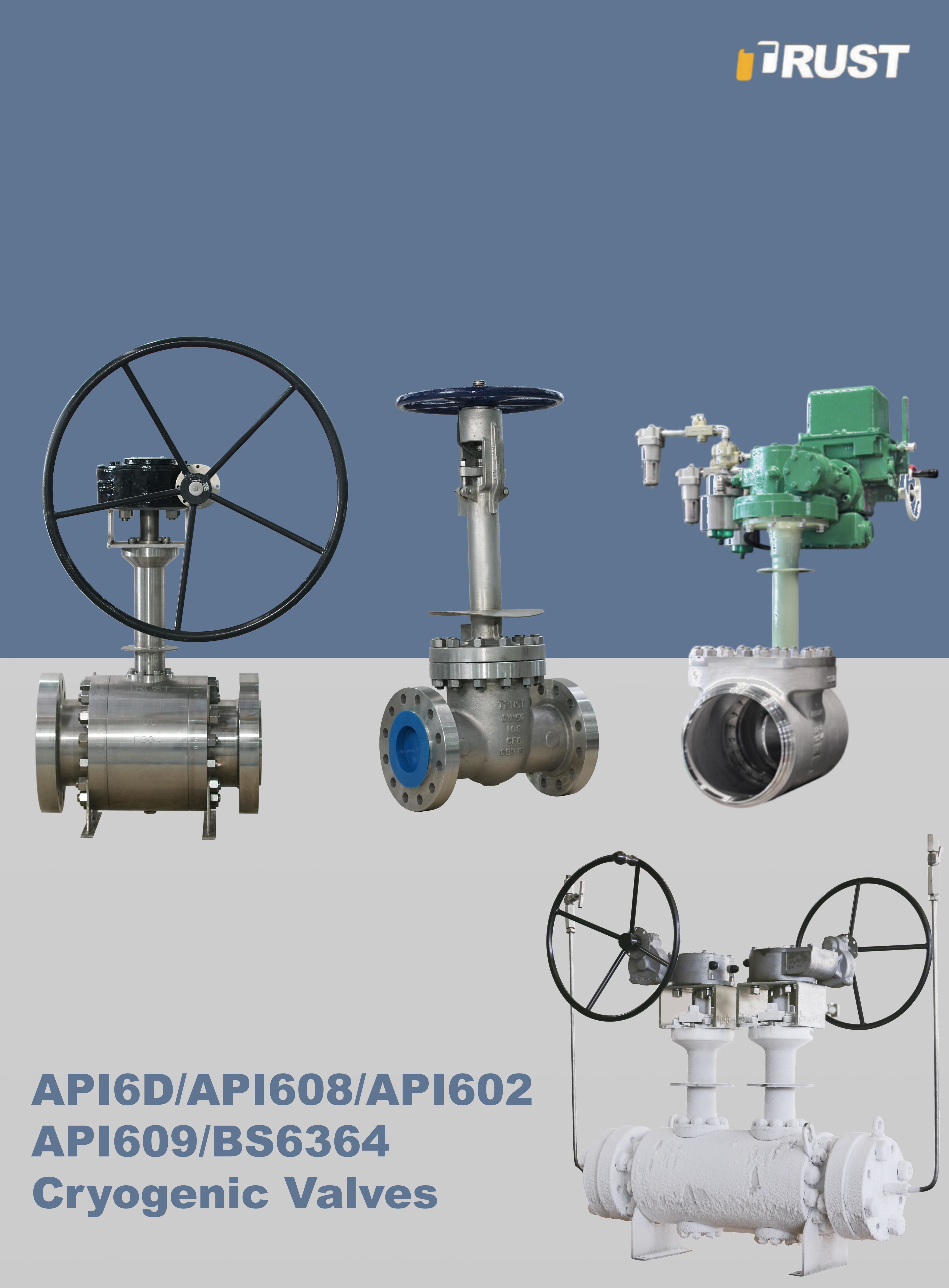

1. Why do Cryogenic Valves typically have an extended stem (extended bonnet) design?

The extended stem (Extended Bonnet) design is the most distinct structural feature of Cryogenic Valves, and its main purposes are:

• Packing Protection: The sealing packing (such as PTFE) in the valve's operating parts can lose elasticity at extreme cryogenic temperatures, leading to leakage. The extended stem creates a natural temperature gradient zone between the extremely cold medium (like LNG) and the ambient temperature, lifting the packing gland to an area less affected by cryogenic temperatures.
• Prevent Freezing: Ensure the packing gland stays above -50°C to prevent moisture in the air from freezing in the stem movement area, thereby avoiding valve actuation jamming or damage.
• Thermal Barrier: Minimize external heat transfer through the stem to the cryogenic fluid, reducing the fluid's vaporization (flashing) rate and improving system efficiency.



2. What are the advantages of Cryogenic Ball Valves and Cryogenic Globe Valves in LNG applications?

In the Liquefied Natural Gas (LNG) industry, the use of Cryogenic Valves is extensive. Cryogenic Ball Valves and Cryogenic Globe Valves each have their suitable applications and advantages:

Trust Valve (Jiangsu) Co., Ltd.'s product line covers both of these core Cryogenic Valve types. The company will provide customized valve solutions based on whether the customer's LNG project requires high flow rates and quick shut-off (leaning towards Cryogenic Ball Valves) or precise flow control (leaning towards Cryogenic Globe Valves), ensuring the operational efficiency and safety of their cryogenic applications.

3. When selecting a Cryogenic Valve, how to determine the suitability of stainless steel?

Determining the suitability of stainless steel for a specific Cryogenic Valve mainly focuses on three points:

1. Low-Temperature Toughness Verification: Austenitic stainless steel (such as the 304/316 series) must be selected. The critical standard is that the material must still meet the energy absorption requirements of the Charpy Impact Test at the minimum design cryogenic temperature to prove its resistance to brittle fracture.
2. Chemical Composition Control: Ferrite content must be strictly controlled. Excessive ferrite content can significantly reduce the material's toughness at cryogenic temperatures.
3. Compliance with Industry Standards: Ensure the selected stainless steel material complies with the grade requirements for cryogenic applications in standards such as ASTM/ASME, and has been verified through professional cryogenic testing.

Trust Valve (Jiangsu) Co., Ltd., as a high-tech enterprise specializing in the manufacture of special alloy valves, possesses in-depth knowledge of the metallurgical properties of cryogenic materials. The company has complete inspection facilities and can perform strict quality control procedures, such as cryogenic testing and NDT (Non-Destructive Testing), ensuring that the material composition and mechanical properties of all stainless steel valves meet the requirements for ultra-low temperature conditions.

4. What is the importance of zero-leakage sealing for cryogenic applications?

Zero Leakage refers to the situation where the amount of fluid leaking through the valve seat when closed is practically zero or within an acceptable extremely low limit (usually far below the "Class A" standards of API 598 or ISO 5208).

In cryogenic applications, zero leakage is crucial for the following reasons:

• Safety: Many cryogenic fluids (such as liquid hydrogen, liquid oxygen) are highly flammable or highly oxidizing. Any leak could lead to fire or explosion.
• Efficiency: Cryogenic fluids are valuable. Internal leakage (Seat Leakage) can cause material waste and a drop in system efficiency.
• Temperature Control: External leakage (Body/Stem Leakage) can lead to external icing, affecting operation and potentially damaging the valve actuation mechanism.

Therefore, Cryogenic Valves typically use soft sealing seats (such as PTFE or PCTFE) or highly precise metal sealing designs to ensure the highest sealing class at cryogenic temperatures.

5. What is the maintenance interval for Cryogenic Valves?

There is no fixed standard for the maintenance interval of Cryogenic Valves, as it mainly depends on the following factors:

• Cycle Frequency: Cryogenic Ball Valves or Cryogenic Globe Valves that are frequently opened and closed require shorter inspection and maintenance intervals.
• Fluid Characteristics: Dirty fluids (such as LNG containing impurities) can accelerate the wear of the seat and internal components.
• Operating Conditions: Valves operating under extreme high pressure or extreme cryogenic temperatures require more intensive monitoring.
• Manufacturer Recommendations: Trust Valve (Jiangsu) Co., Ltd. and other professional manufacturers provide specific inspection and maintenance guidelines based on their valve design and service life assessment.

For Cryogenic Valves in critical systems, a visual and functional inspection is generally recommended annually, while major overhauls or internal component replacement are typically scheduled within a 2- to 5-year cycle, or when performance degradation or leakage is detected.
