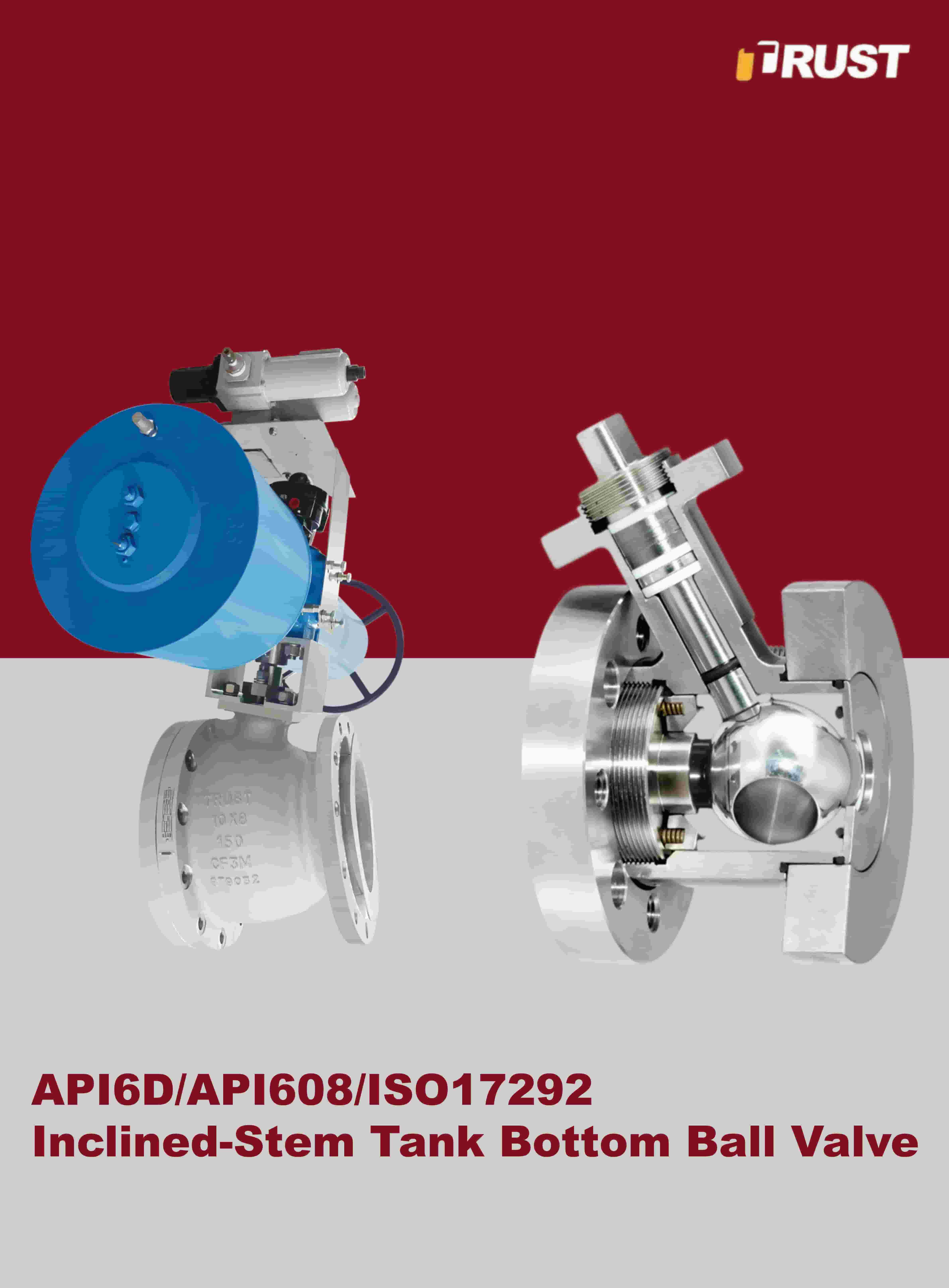

Inclined-Stem Tank Bottom Ball Valves

Efficient Discharge Control for Tank Bases

"Clog-Resistant. Leak-Tight. Trust Valve—Tank Bottom Reliability Redefined."

INQUIRY
  • Key Features & Benefits
  • Product Range

  • Technical Specifications

  • Applications

Features

Benefits

Inclined-Stem Design

Angled stem keeps operating components clear of direct material flow, reducing fouling/corrosion and easing maintenance access.

Full-Port Ball

Unobstructed flow path minimizes pressure drop, enabling fast, complete tank discharge of liquids, slurries, or granular media.

Tight Sealing

Precision-machined ball with PTFE/elastomer seats ensures zero leakage—critical for hazardous or valuable materials.

Abrasion-Resistant Build

316L stainless steel, carbon steel, or alloy bodies; hardened ball/stem options (tungsten carbide) for abrasive service.

90° Quarter-Turn Operation

Quick on/off control, compatible with manual, gear, or actuator (pneumatic/hydraulic) operation.
  • Key Features & Benefits
  • Product Range

  • Technical Specifications

  • Applications

Standard Tank Bottom Valves

  • Sizes: NPS 2"–12" (DN 50–300); Pressure: Up to 150 psi (10.3 bar).
  • Carbon steel construction for general liquids/granules (food, agriculture).

Corrosion-Resistant Models

  • Sizes: NPS 1"–10" (DN 25–250); 316L/Hastelloy® for acids, chemicals, or saltwater.

Heavy-Duty Abrasive Service

  • Sizes: NPS 3"–16" (DN 80–400); Pressure: Up to 300 psi (20.7 bar).
  • Tungsten carbide trim for ores, coal, or slurry discharge.
  • Key Features & Benefits
  • Product Range

  • Technical Specifications

  • Applications

  • Size Range: NPS 1"–16" (DN 25–400)
  • Pressure Rating: 50–300 psi (3.4–20.7 bar)
  • Temperature Range: -20°C to 250°C (-4°F to 482°F)
  • End Connections: Flanged (ASME B16.5), Butt-Weld (ASME B16.25)
  • Key Features & Benefits
  • Product Range

  • Technical Specifications

  • Applications

  • Food/Beverage: Tank discharge of grains, syrups, or liquids.
  • Chemicals: Corrosive fluid/granule transfer (e.g., acids, solvents).
  • Mining: Slurry, ore, or coal tank bottom emptying.
  • Agriculture: Fertilizer, seed, or feed storage discharge.
  • Power: Ash or fuel tank outlet control.
