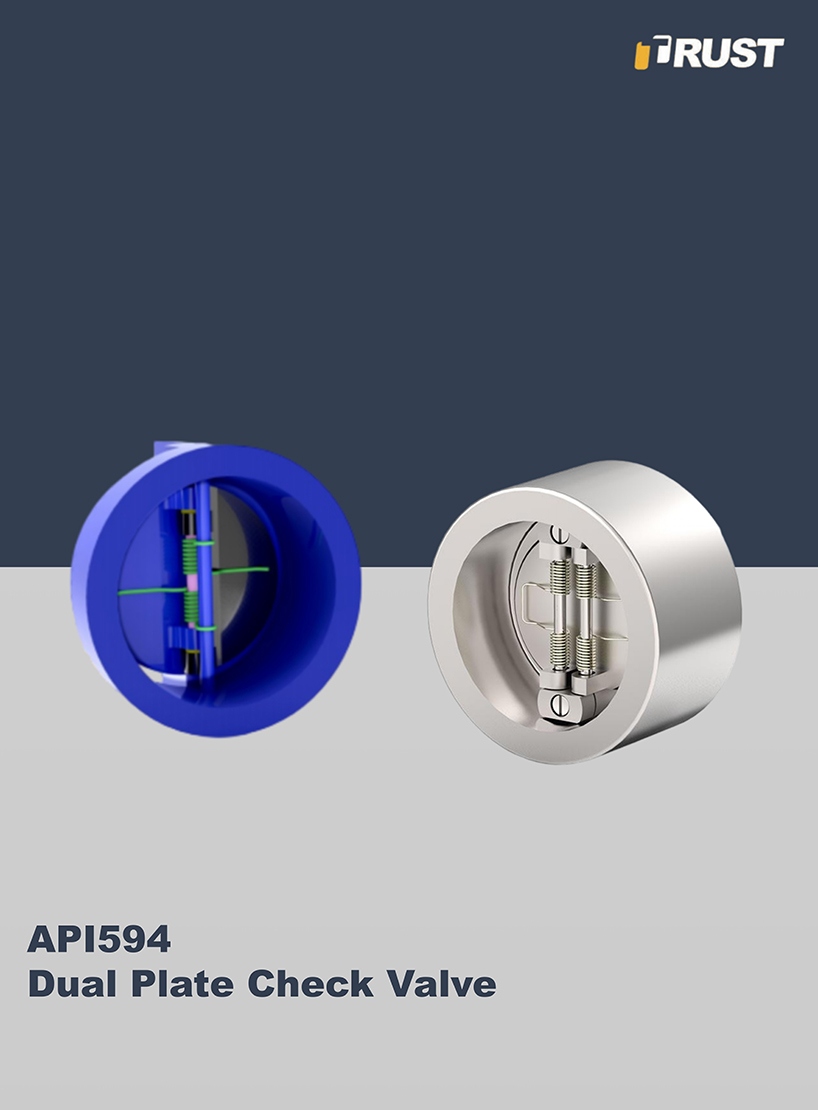

Dual Plate Check Valve

How Do Dual Plate Check Valves Minimize Water Hammer and Optimize Flow Efficiency in Large Diameter Pipeline Systems?

The operation of massive fluid transfer networks, essential for sectors such as Water and Wastewater Treatment, Oil and Gas transportation, and large scale Power Generation cooling systems, hinges on components that guarantee unidirectional flow with minimal energy loss. Dual Plate Check Valves are the definitive engineering solution for this requirement. These valves are designed to prevent dangerous backflow and associated pressure surges, known as water hammer, while maintaining high flow efficiency across exceptionally large pipeline diameters. The inherent technical advantages of the Dual Plate Check Valve design, combined with robust material selection, make them indispensable for protecting critical infrastructure.

Operational Integrity and Hydraulic Efficiency

The fundamental design feature ensuring reliable performance is the Swing Disc Design with Hinged Top Pivot. Unlike heavy, single disc alternatives, the dual plate configuration features two lightweight plates that close rapidly. This quick closure mechanism is essential because it ensures quick closure to minimize backflow and water hammer effects in pump shutdown scenarios. By closing quickly before flow reversal gains significant momentum, the valve effectively dampens severe pressure transients. This protective function is vital for safeguarding expensive pumps, meters, and heat exchangers from damaging surge forces. This specific attribute is highly valued in the Water and Wastewater sector, particularly in treatment plants and distribution mains where large volume pumps are frequently cycled.

A second critical advantage of the Dual Plate Check Valve is the Full Bore Flow Path. When the valve is fully open, the discs retract completely out of the flow stream, creating an unobstructed passage. This feature maintains minimal pressure drop, typically less than zero point five pounds per square inch in standard applications, directly optimizing energy efficiency in large networks. In extensive systems, such as crude oil pipelines and large scale cooling water systems in Power Generation, minimizing pressure drop translates into substantial operational cost savings and reduced pumping energy requirements. The hydraulic efficiency provided by the Dual Plate Check Valve ensures that the system operates near its theoretical maximum capacity.

To accommodate the diverse application sectors, the valves are available with both Welded or Bolted Body Construction. The welded construction is preferred for high integrity systems where leak tightness under extreme pressure or high temperature is non negotiable, offering maximum structural strength. Conversely, the bolted construction is often chosen for its practicality, enabling easy maintenance in water treatment plants and other utility applications where regular inspection or replacement of internal components is necessary.

Technical Scope and Product Versatility

The product range encompasses several specialized check valve types designed to meet specific needs. The core offerings include the Single Disc Swing Checks for Nominal Pipe Size two inches up to forty eight inches, alongside the specialized Dual Plate Checks. The dual plate variants often incorporate linings made from materials such as specialized rubber or Polytetrafluoroethylene for use with corrosive media in chemical processing. Furthermore, specialized designs like Cryogenic Swing Checks are manufactured for extreme temperature service, essential for industries like Liquefied Natural Gas and oxygen service, where temperatures drop to negative one hundred ninety six degrees Celsius.

The technical specifications confirm the immense scope and scale of these components. The Size Range is truly expansive, running from Nominal Pipe Size two inches to one hundred forty four inches, covering everything from utility lines to the largest water distribution mains. The valves are engineered to handle a broad spectrum of pressure requirements, certified to Pressure Classes from one hundred fifty to nine hundred, equivalent to Pressure Nominal twenty to Pressure Nominal one hundred sixty.

Compliance and performance are verified through mandatory testing. This includes API five hundred ninety eight for rigorous Shell and Seat Testing, and more critically, API five hundred ninety four Type Testing for Closure Performance. The range of certified Materials includes standard grades like WCB and WC six for high pressure hydrocarbon service, corrosion resistant alloys such as CF eight and CF eight M for corrosive fluids, and specialized materials like Ductile Iron Grade four zero for dedicated water applications. This adaptability allows the Dual Plate Check Valve to be effectively deployed across Water and Wastewater, Oil and Gas, Power Generation, and Marine applications, including ballast water systems.

How is the Performance and Compliance of Dual Plate Check Valves Guaranteed by Advanced Manufacturing?

The reliability of Dual Plate Check Valves hinges on manufacturing processes that meet the most stringent global standards, thereby guaranteeing the valve's integrity in critical operations. These components require a supplier with proven technical expertise and quality accreditation to ensure dependable performance in extreme service. Trust Valve (Jiangsu) Co., Ltd., established in one thousand nine hundred ninety seven, has achieved distinction as a leading China Dual Plate Check Valve Manufacturer and Dual Plate Check Valve Supplier. The company’s focus on the design, production, and sale of special materials and special structure valves means that all its Dual Plate Check Valves are built with knowledge derived from solving the most challenging application problems.

Mandatory Global Certifications and Quality Assurance for Dual Plate Check Valves

The performance of Dual Plate Check Valves in global markets is underpinned by mandatory quality assurance and certification. This verification process ensures that the valve's shell strength, seat tightness, and emissions performance are independently validated. The global market credibility of these valves from manufacturers like Trust Valve (Jiangsu) Co., Ltd. is built upon an exhaustive portfolio of global certifications. The company’s operations are managed through advanced ERP management software and anchored by the foundational ISO nine thousand one certification for quality management systems.

The validation of the Dual Plate Check Valve design extends across several critical domains. They are certified to the TS Technical Specification for Chinese industrial quality demands and the HSE Health Safety and Environment certification, confirming rigorous operational due diligence. Market access across Eurasia is secured by the EAC Eurasian Conformity Mark, and compliance with key American Petroleum Institute standards includes API six D for pipeline valves and API six hundred two for compact steel valves. A major emphasis is placed on environmental and safety compliance, with certifications like the German TA Luft certification, API six hundred twenty four, and ISO one five eight four eight, all of which mandate the stringent control of fugitive emissions and valve stem leakage, which is crucial even for check valves operating in high pressure environments. Safety under fire conditions is confirmed by the fire safe certifications API six hundred seven, API six FA, and ISO one zero four nine seven. Ultimately, the integrity of these Dual Plate Check Valves is further validated for use in safety instrumented functions through the SIL Safety Integrity Level certification, and permitted for sale throughout the European Economic Area under the CE Conformité Européenne Mark.

Product Enhancement Through Extreme Service Engineering

The enhanced performance and reliability of standard Dual Plate Check Valves are often a direct result of manufacturing knowledge gained from extreme service engineering. When a manufacturer specializes in producing components for the most difficult applications, that expertise elevates the quality of the entire product line. Trust Valve (Jiangsu) Co., Ltd. possesses this unique competitive advantage, focusing its core competency on manufacturing for conditions characterized by high temperature, high pressure, strong corrosion, ultra low temperature, and ultra high temperature.

This specialization is evident in their main product portfolio, which includes Ultra Low Temperature Valves essential for extreme cryogenic service and Hydrogenation Valves designed for high pressure catalytic processes. This continuous engineering exposure to severe service environments directly elevates the quality and capability of every Dual Plate Check Valve they produce. The knowledge gained from designing customized valves for complex service, such as selecting the optimal material composition for corrosion resistance or ensuring absolute structural integrity under extreme thermal cycling, is directly applied to the fabrication of every Dual Plate Check Valve. This ensures superior performance and durability whether the valve is deployed in a demanding chemical processing plant or a high volume water distribution system.

Tailored Material and Design Solutions for Complex Applications

Optimal performance of a Dual Plate Check Valve in a critical system requires correct selection and potential customization. A professional supplier must provide collaborative services to ensure the product is perfectly matched to the specific operational environment. Trust Valve (Jiangsu) Co., Ltd. functions as a strategic partner, offering dedicated, specialized services designed to collaboratively address user challenges beyond simply supplying the hardware. This proactive approach is founded on the principle of achieving common value between the factory and the customer.

This collaborative model includes expert Valve Selection guidance, where the company assists users in choosing the most appropriate check valve design, whether it be a single swing, dual plate, or cryogenic variant, ensuring optimal performance for their specific application, such as minimizing water hammer in pump stations or managing flow in offshore platforms. This is integrated with dedicated Material Selection expertise, advising on the optimal cast steel grade or alloy required, such as CF eight M with Polytetrafluoroethylene linings, to guarantee long term containment against specific corrosive media. The manufacturer also offers full Customization services, tailoring the design of the Dual Plate Check Valves or engineering entirely new solutions to meet precise client specifications. This capability culminates in comprehensive Solution Provision, where Trust Valve (Jiangsu) Co., Ltd. works consultatively with clients to address and solve complex fluid control problems, ensuring operational success and system safety.
